电液同步数控折弯机

　　性能与特点

　　Performance and Features

　　1.整体焊接加工结构

　　2.德国进口电液伺服阀及进口光栅尺构成的闭环控制方式，滑块位置反馈精度高，运行准确平稳，同步性能好，折弯精度、滑块的重复定位精度高。

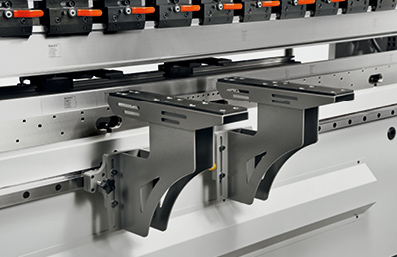

　　3.后挡料可根据客户需求采用功能更为齐全的多个后挡料轴的后挡料机构。

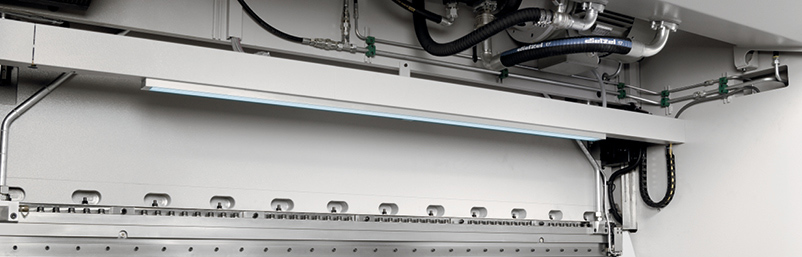

　　4.液压系统采用集成式控制系统，减少了管路的安装，克服漏油现象，确保了机床的工作稳定性，外形简洁美观。

　　5.液压挠度自动补偿机构，消除了滑块变形对工件质量的影响，数控系统自动调整补偿量，方便准确。

　　6.数控系统采用荷兰DELEM、意大利ESA或瑞士CYBELEC电液伺服折弯机专用数控系统。

　　1.Overall welded and processed structure.

　　2.Closed loop control mode composed of electric-hydraulic servo value and measure ruler,ensure the highest controlling precision,bending accuracy and repositioning accuracy are also reach the highest level.

　　3.Backgauge mechanism can control sevrral backgauge axes.

　　4.Integrated hydraulic system decreases the pipe connections,oil leakage and increases the stability and overall beautiflies.

　　5.Hydraulic compensation mechanism helps to prevent the deformed slider from affecting the quality of the workpiece,and the compensation mechanism is adjusted automatically by the CNC controller which is convenient and accuracy.

　　6.NC controller uses Holland DELEM,Italy ESA or Swiss CYBELEC with Multi-languages.
